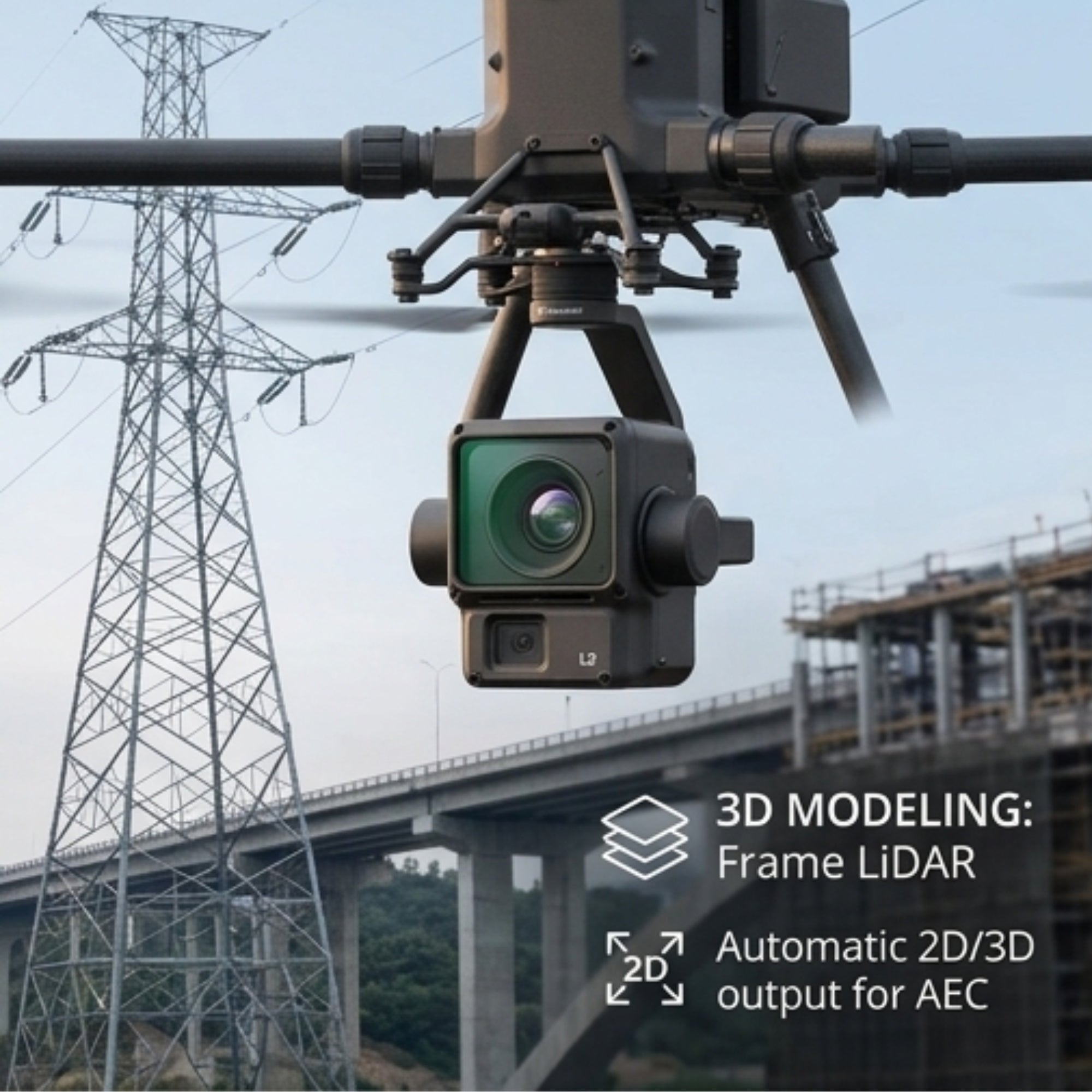

The DJI Zenmuse L2 is a high-precision aerial LiDAR system designed for professional surveying and mapping. Integrating frame LiDAR, a self-developed high-accuracy IMU, and a 4/3 CMOS RGB mapping camera, the L2 provides efficient and reliable geospatial data acquisition. When paired with DJI Terra, it offers a turnkey solution for 3D data collection, point cloud generation, and high-accuracy post-processing. With superior penetration, multi-return support, and live point cloud preview, the L2 delivers precision, speed, and operational efficiency for power line inspection, forestry, and complex terrain surveying.
Specifications

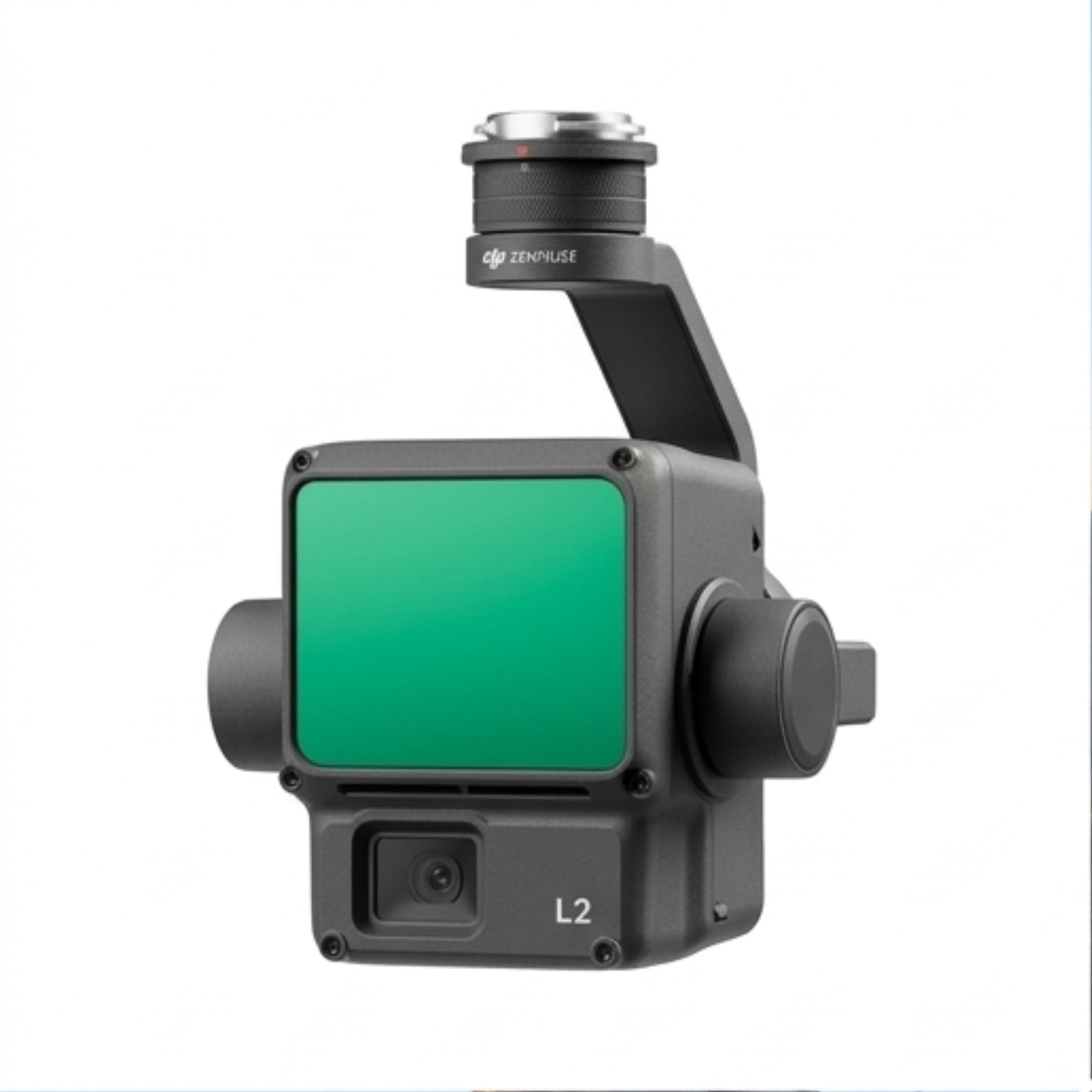

- Product Name: DJI Zenmuse L2
- Sensor: Frame LiDAR + 4/3 CMOS RGB mapping camera, 20 MP
- IMU: High-accuracy self-developed IMU, no warm-up required
- Accuracy: 4 cm vertical / 5 cm horizontal
- Operational Altitude: Up to 120 m
- Point Cloud Emission Rate: 240,000 points/sec
- LiDAR Returns: Supports up to 5 returns
- Detection Range:
- 250 m at 10% reflectivity and 100 klx
- 450 m at 50% reflectivity and 0 klx
- Mapping Camera: Mechanical shutter, 3.3 μm pixel size, min photo interval 0.7 s, 200,000 shutter lifespan
- Scanning Modes: Repetitive and non-repetitive scanning
- Gimbal: 3-axis stabilized
Features
- Integrated LiDAR Solution: Combines LiDAR, RGB camera, and IMU for high-precision geospatial data.
- High Precision: 4 cm vertical and 5 cm horizontal accuracy using RTK and IMU fusion.
- Exceptional Efficiency: Collects geospatial and RGB data from up to 2.5 km² per flight.
- Superior Penetration: Small laser spot size enables dense point clouds and vegetation penetration.
- 5 Returns Support: Captures multiple ground points in dense foliage.
- Intuitive Operation: Compatible with Matrice 350 RTK and DJI Terra for turnkey workflows.

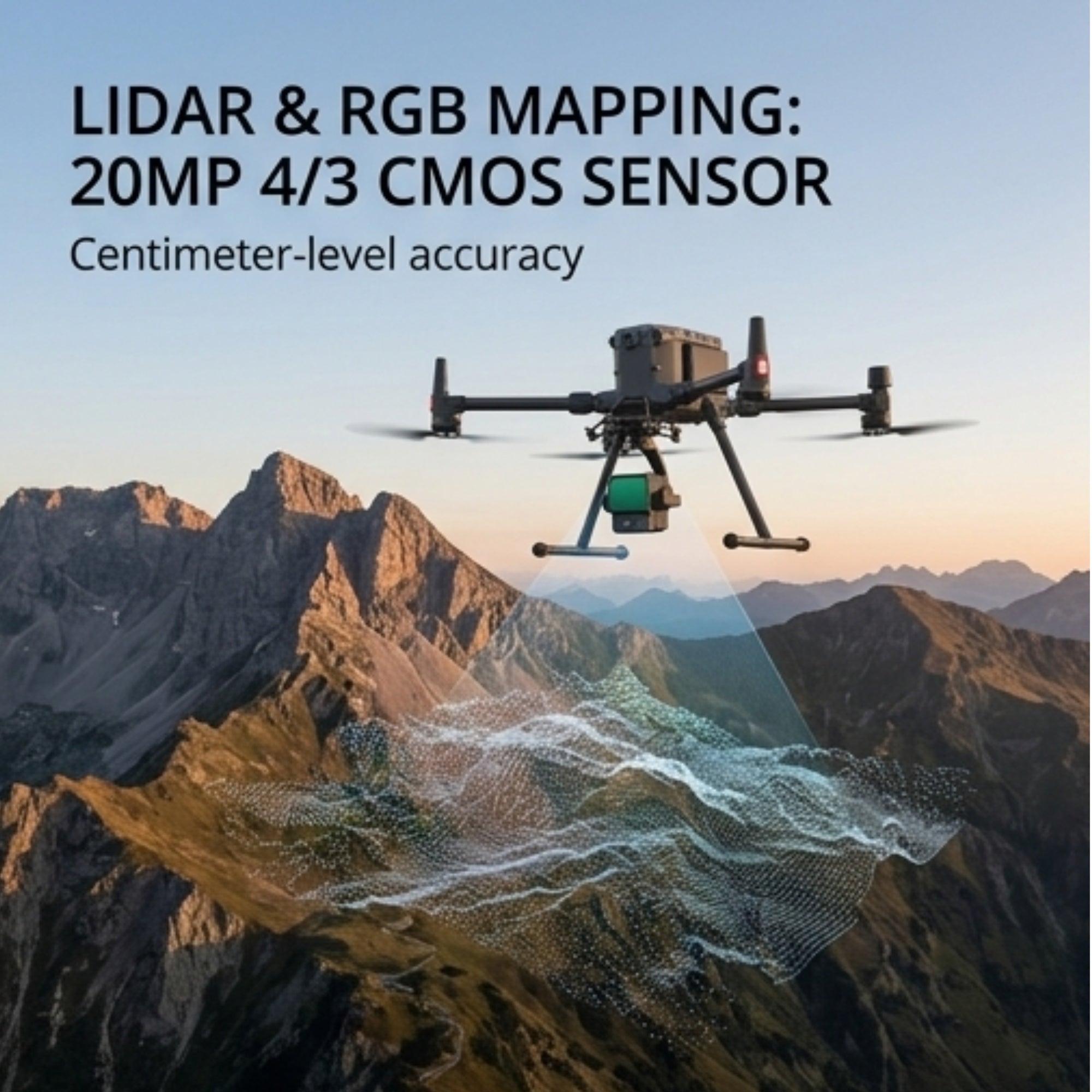

- RGB Mapping Camera: 20 MP, 4/3 CMOS, mechanical shutter; supports true-color point cloud capture.
- Operational Enhancements: Live point cloud preview, playback, merging, task quality reports, PPK solutions, and one-click processing on DJI Terra.
Maintenance
- Inspect LiDAR and camera lenses for dust, debris, or damage before each flight.
- Clean sensors and lenses with a soft, lint-free cloth; avoid harsh chemicals.
- Store the unit in a dry, temperature-controlled environment when not in use.
- Keep firmware up to date for the LiDAR, IMU, and RGB camera systems.
- Check IMU calibration and RTK connections before missions.
- Avoid mechanical shocks during installation, removal, and transportation.
